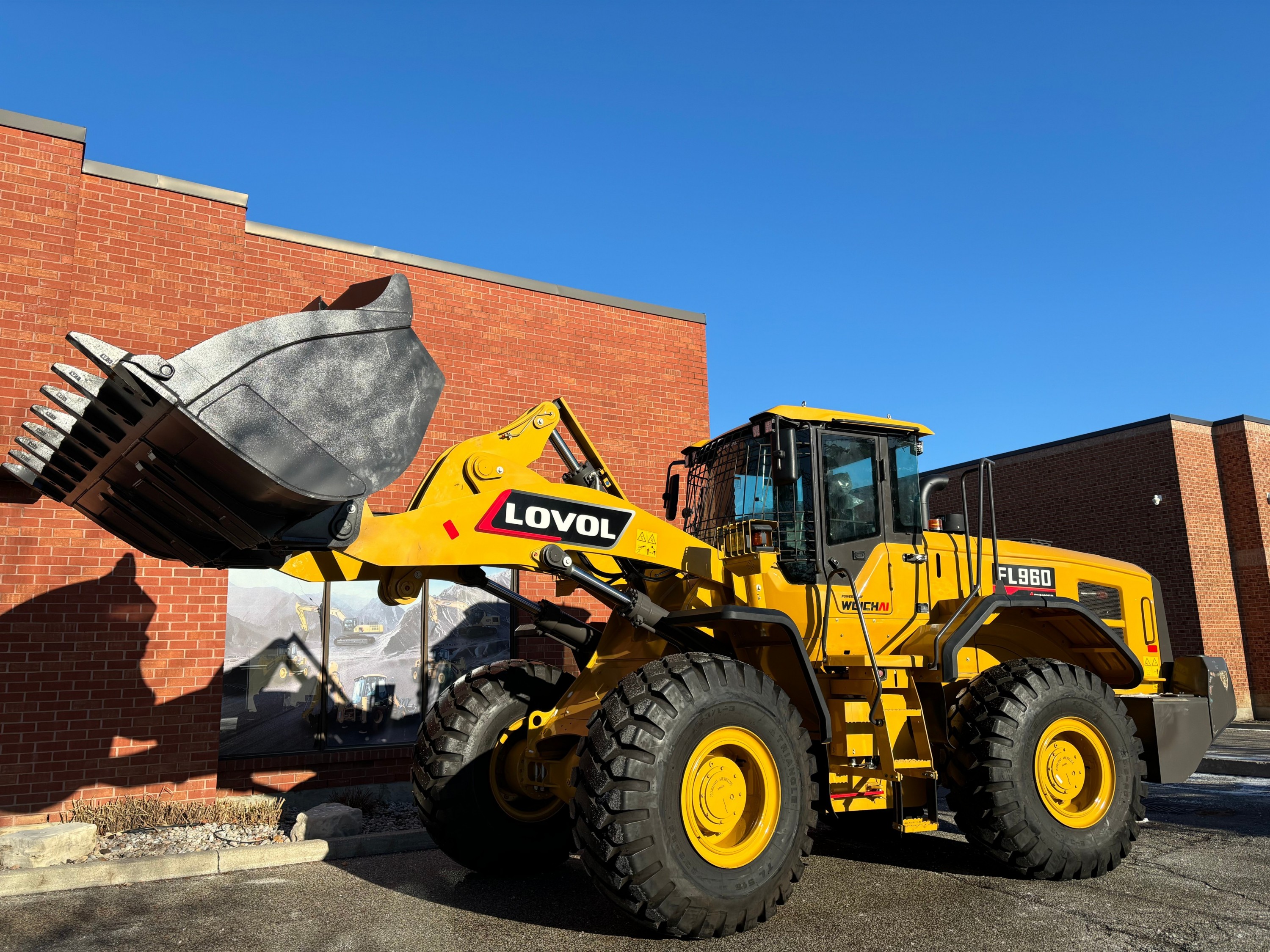

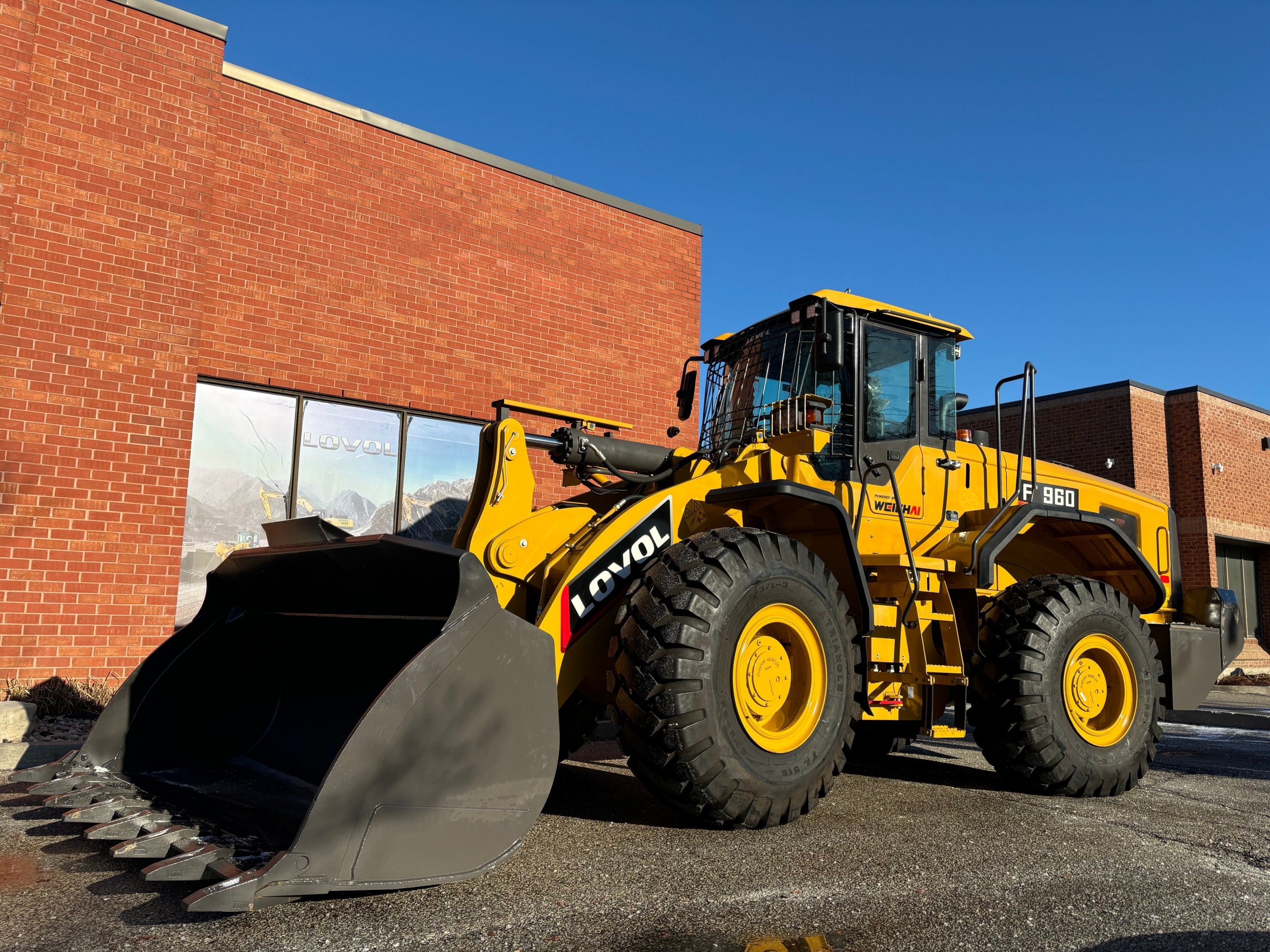

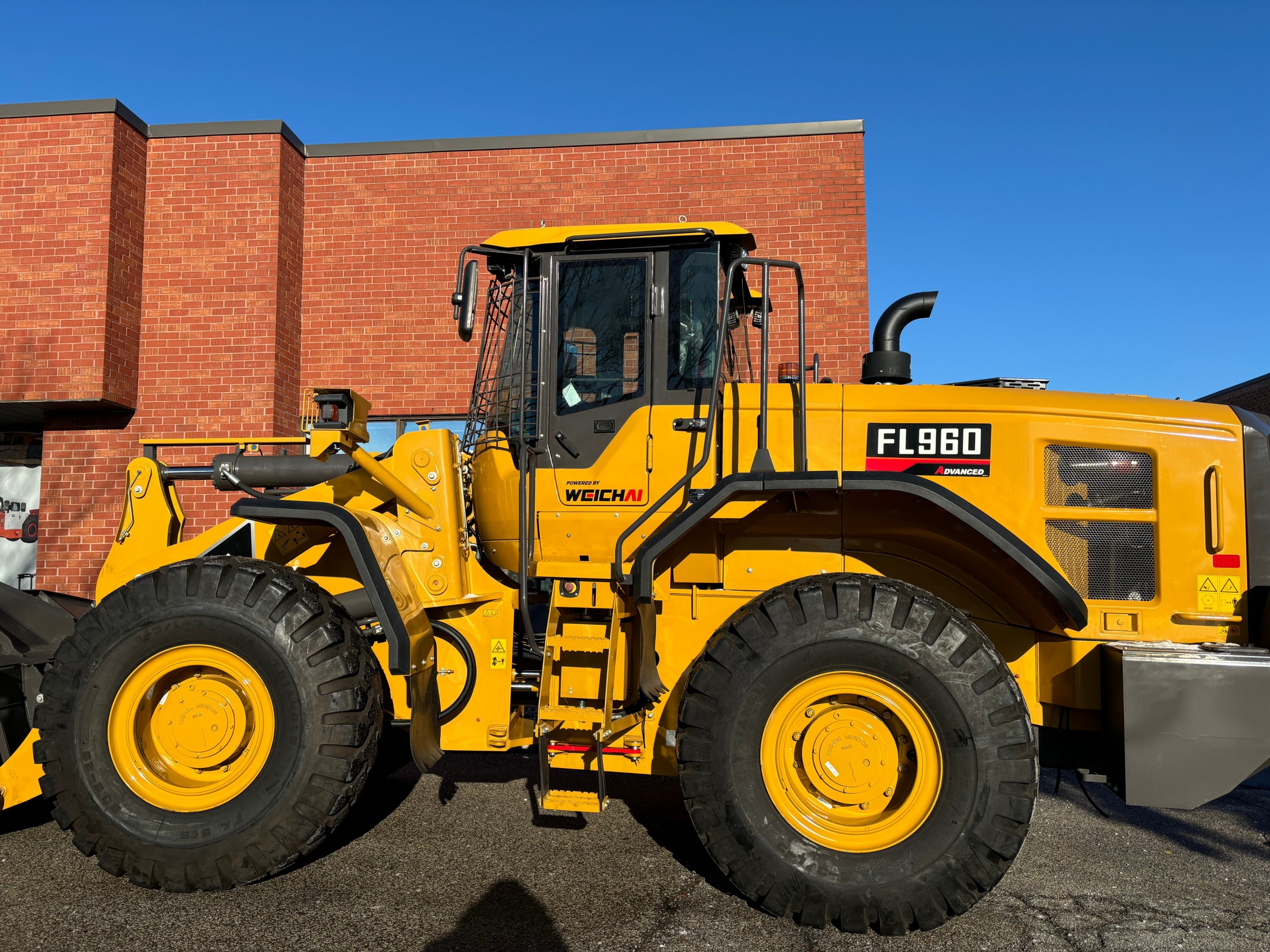

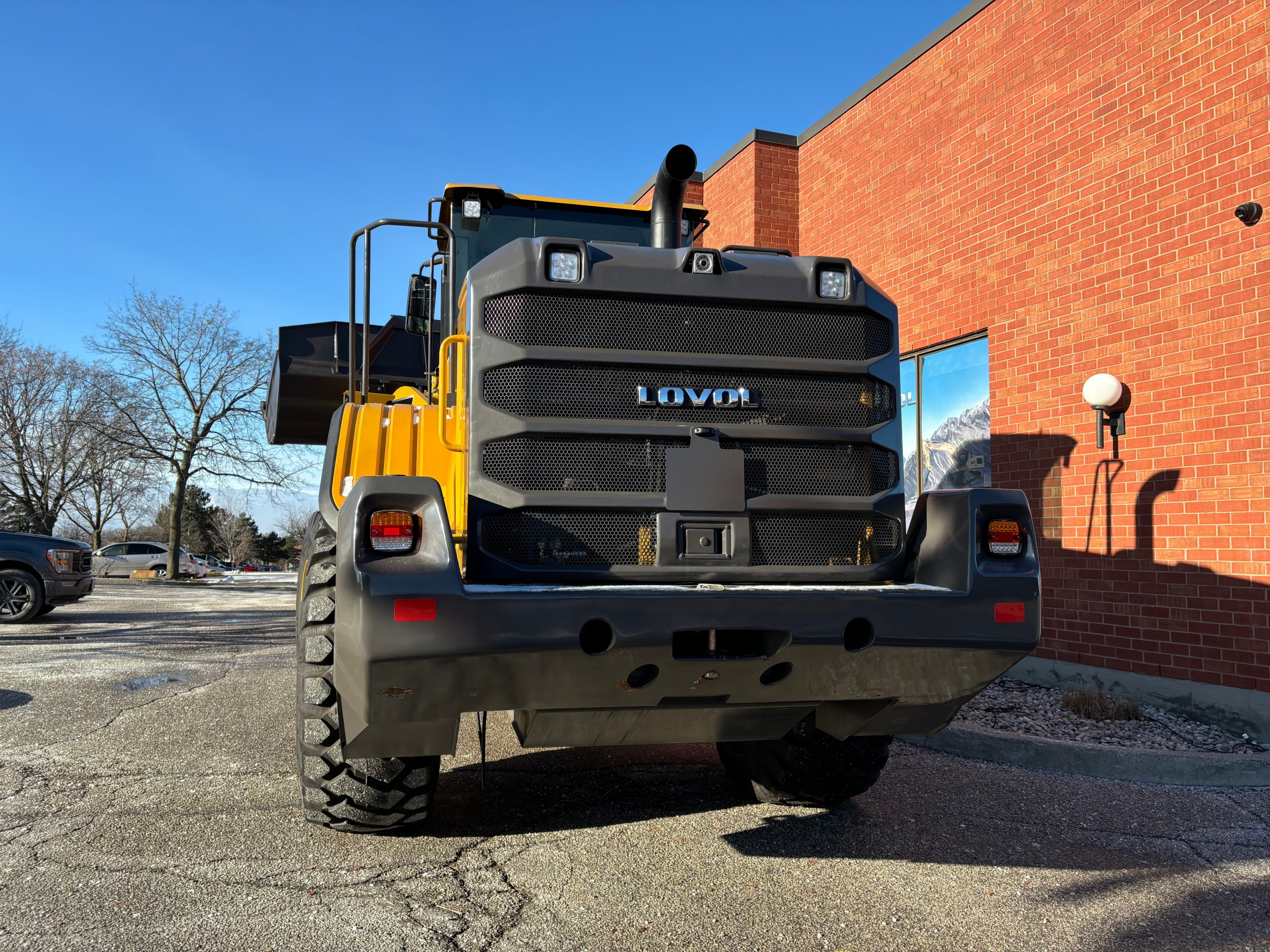

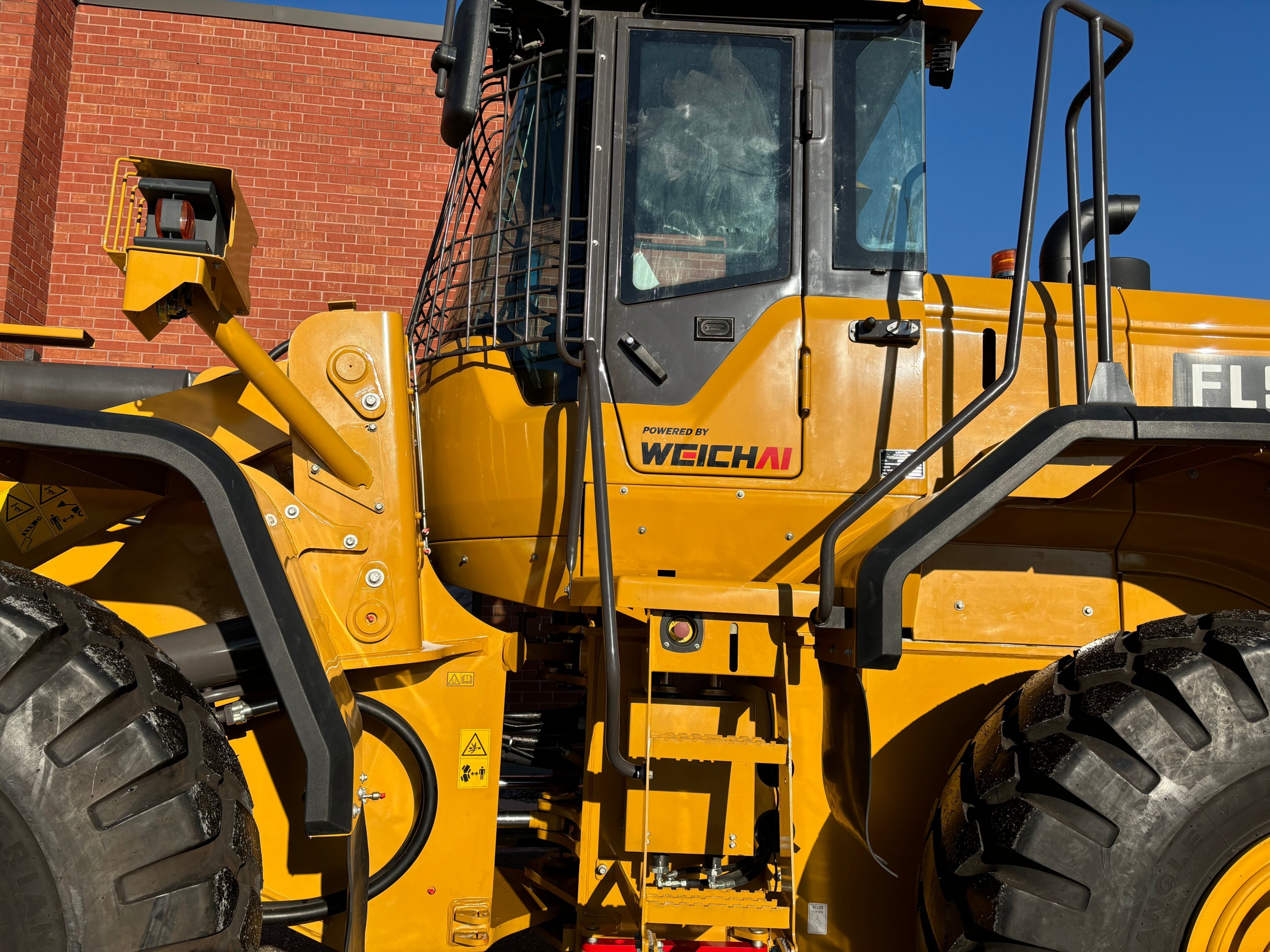

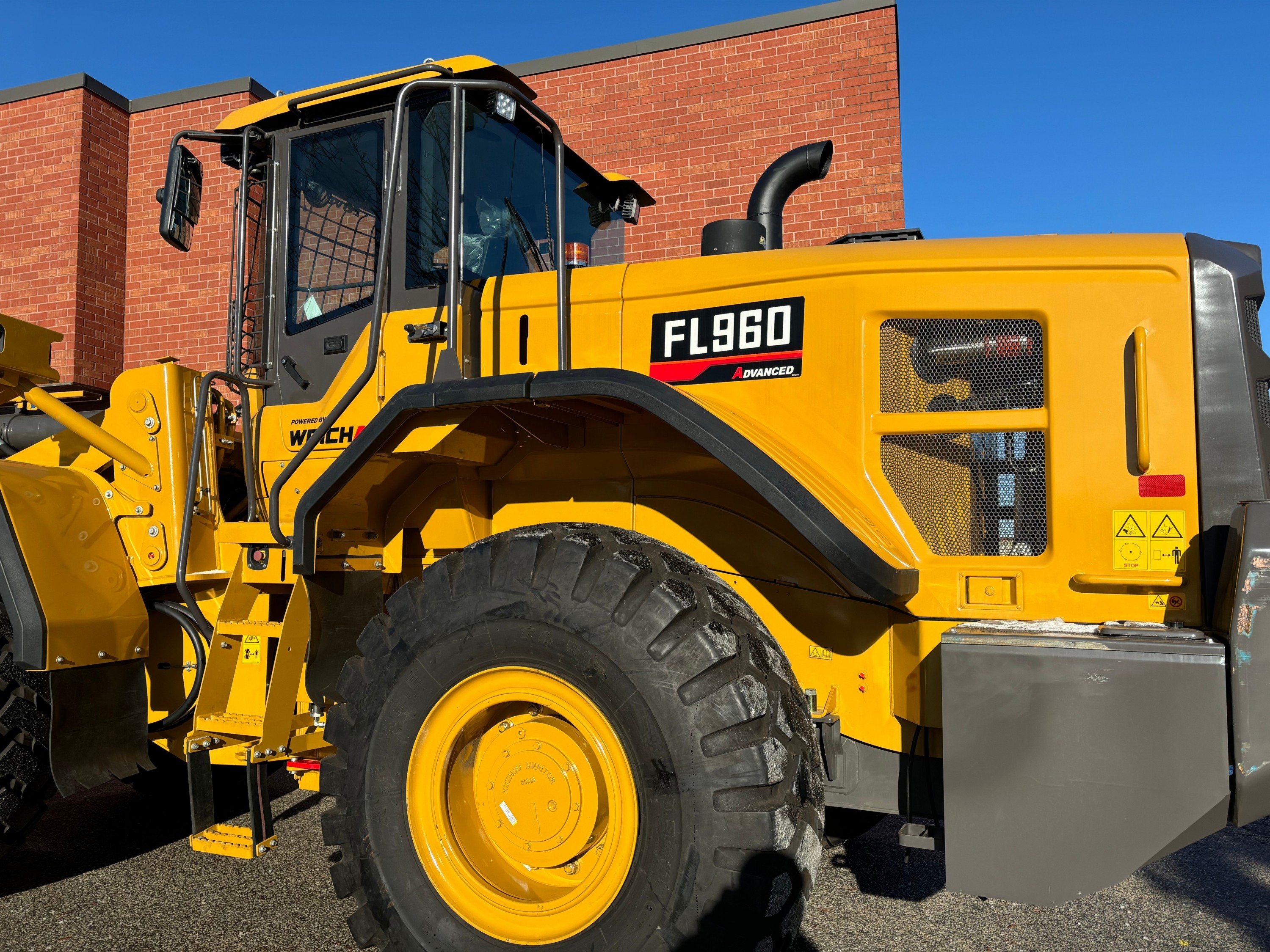

LOVOL FL960K
Tele：437-669-9966 437-665-3088 647-612-6661 Email: cmmsdirector@gmail.com
Share this product

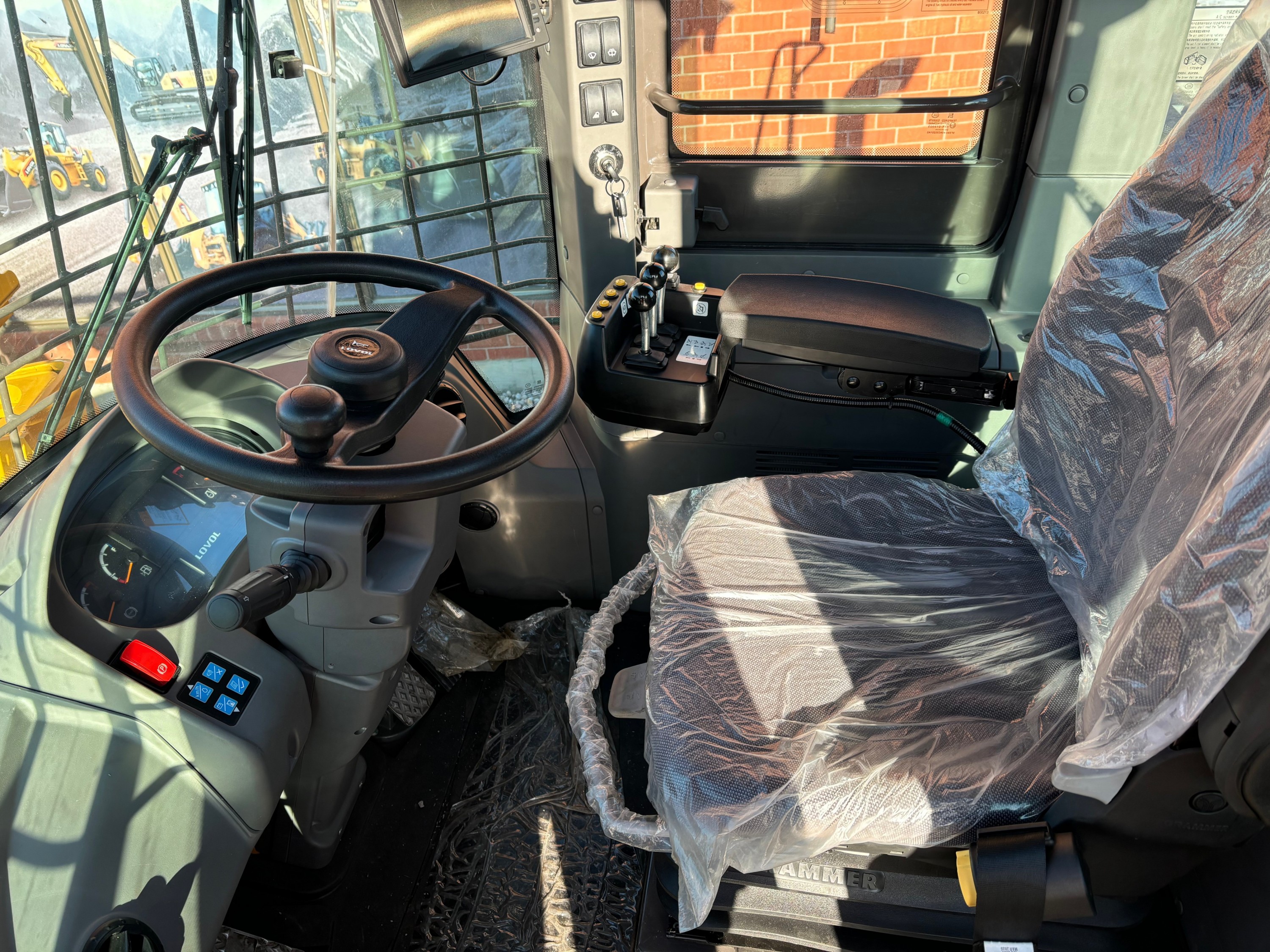

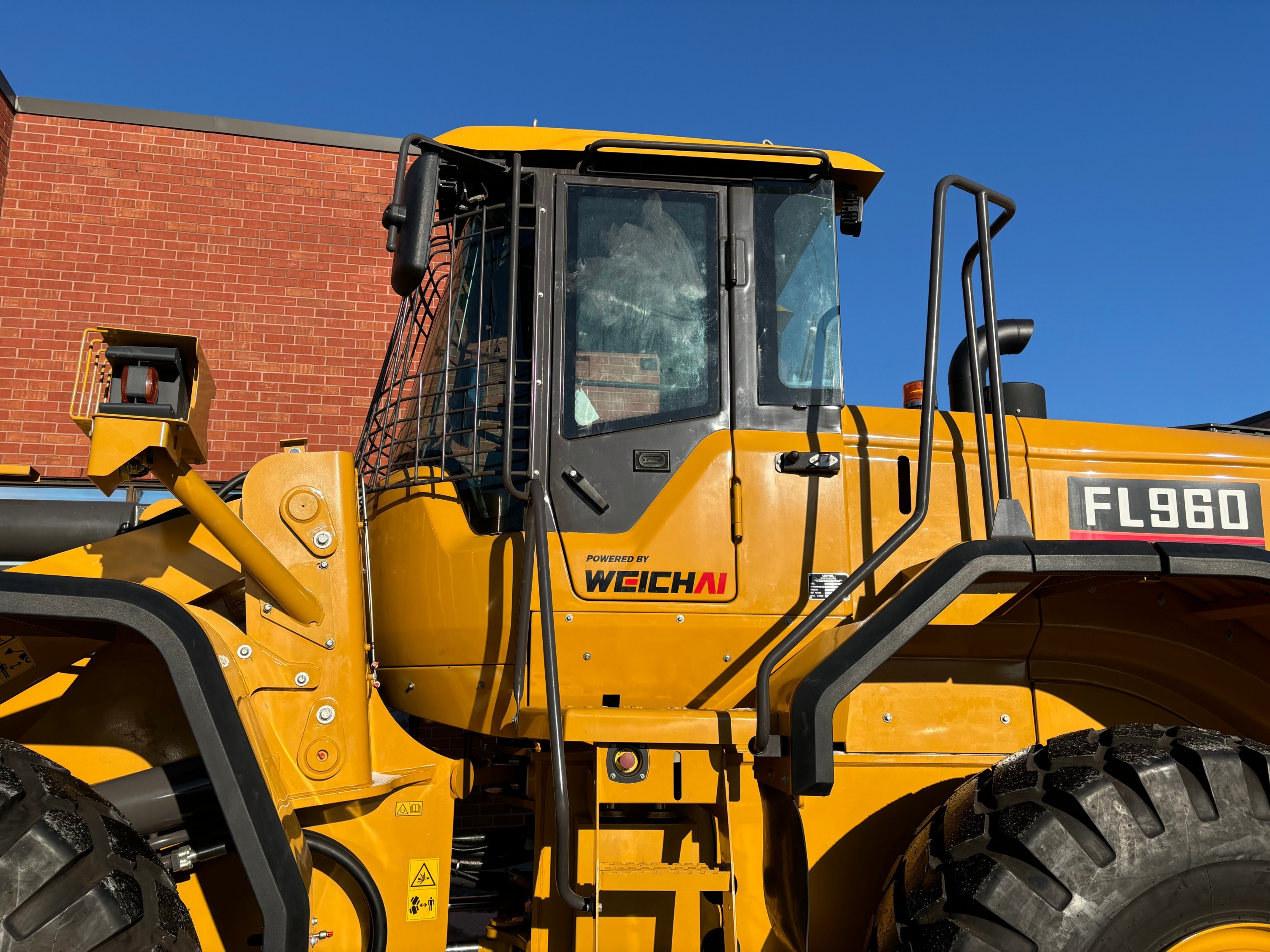

Cummins EPA4 engine, electronically controlled shift fixed axle box, independent cooling, Meritor wet drive axle with front + rear limited slip differentials, patterned tires (front 20PR, rear 16PR), standard arm, 3.0 cubic standard bucket, pilot control with compound action, full hydraulic dual brakes, driving shock absorption, reserved triple, K generation safety cab with front protection, heated air suspension seat, universal key, full mud and tile, air conditioning, electronically controlled heater (adjustable), LED lights throughout the vehicle, 12V charging port, rear monitor, rear wiper, rear defrost, retractor, emergency ignition switch outside the cab, license plate bracket and light, parking wedge, cast iron counterweight.
| Basic configuration technical parameters and forms | EngineB7:G23B7:B7:G23 | Supplier and Specifications | Guangxi Cummins QSB6.7 | Rated speed (r/min) | 2200 | |
| Maximum torque (N.m) | 1186 | |||||
| Emissions | EPA4 | Rated power (kW) | 168 | |||
| Gearbox | Type | Electronically controlled gear shift fixed axis (foreign brand) | Input torque/speed/gear ratio | 1700/2200/4.152 | ||
| Torque converter | Type | Single-stage, single-phase, three-element | Torque conversion coefficient | 2.58 | ||
| Drive axle | Type | Wet drive axle | Input torque/Speed/Gear ratio | 5100//22.85 | ||
| Boom | Type | Standard arm | Boom length (mm) | 2960 | ||
| Bucket | Type | Standard bucket | Bucket capacity (m³) | 3.0 | ||
| Bucket teeth type | Bucket Teeth | |||||

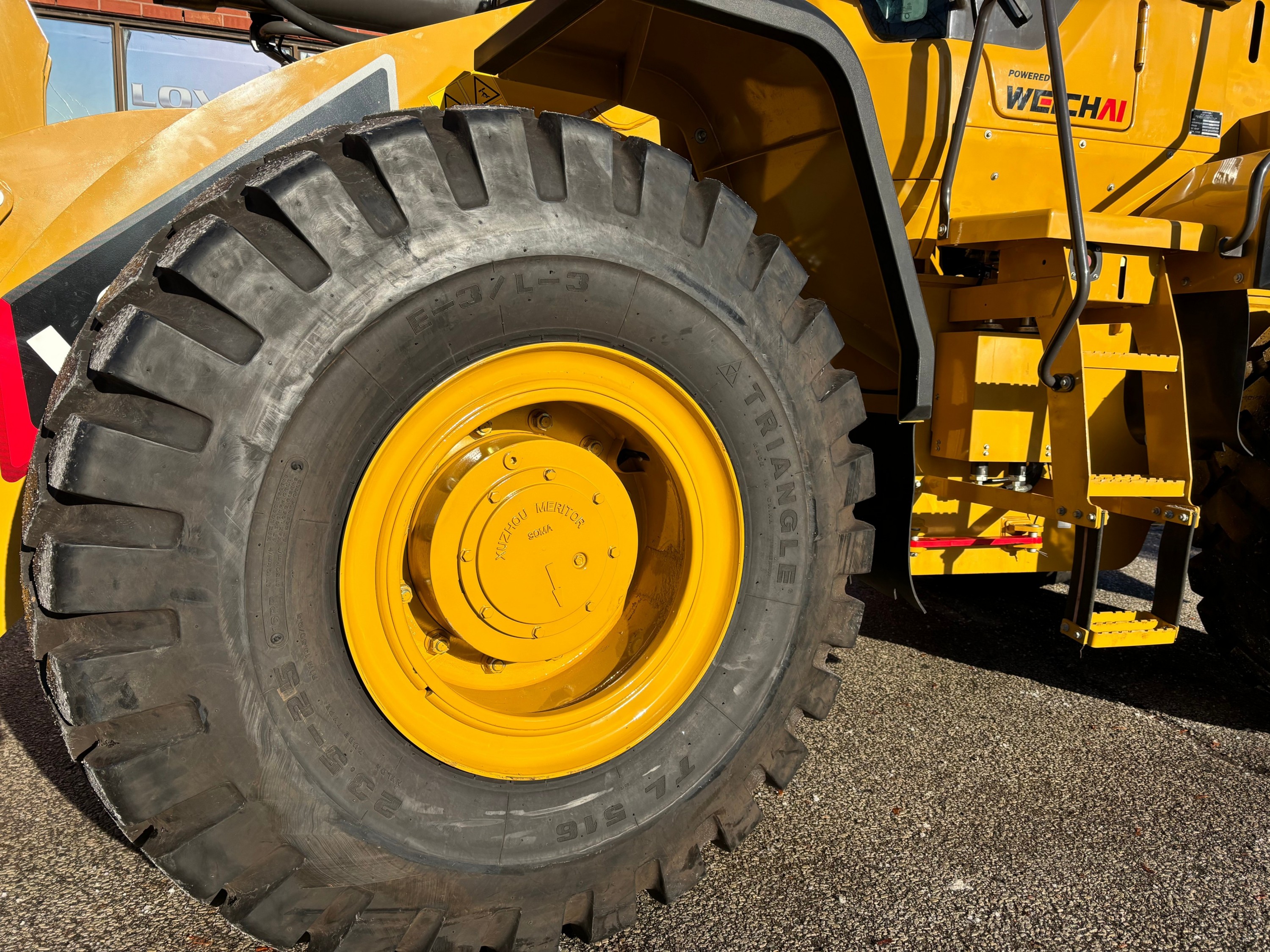

| Tires | Type | Wide-base bias tires | Specifications/Inner tube/Ply/Pattern | 23.5-25/Yes/20PR/L-3 | ||
| Hydraulic System | Type | Quantitative and variable confluence | Cab | Type | K-generation cab | |
| Rear View Monitor | Type | Yes | Hydraulic controls | Type | Pilot controls with compound motion | |
| Cab temperature control | Type | Air conditioning | Seat | Type | Air suspension seat | |
| Machine parameters | Overall dimensions (L×W×H) (mm) | 8600×2980×3460 | Machine weight (kg) | 18780 | ||
| Rated load capacity (kg) | 5500 | Maximum speed (km/h) | 37.5 | |||
| Wheelbase (mm) | 3350 | Trackbase (mm) | 2150 | |||
| Breakout force (kN) | 165 | Traction force (kN) | 163 | |||
| Bucket outer turning radius (mm) | 7140 | Sum of three factors (s) | 10 | |||
| Steering angle (°) | 37 | Departure angle (°) | 29 | |||
| Dumping height (mm) | 3100 | Dumping distance (mm) | 1130 | |||
