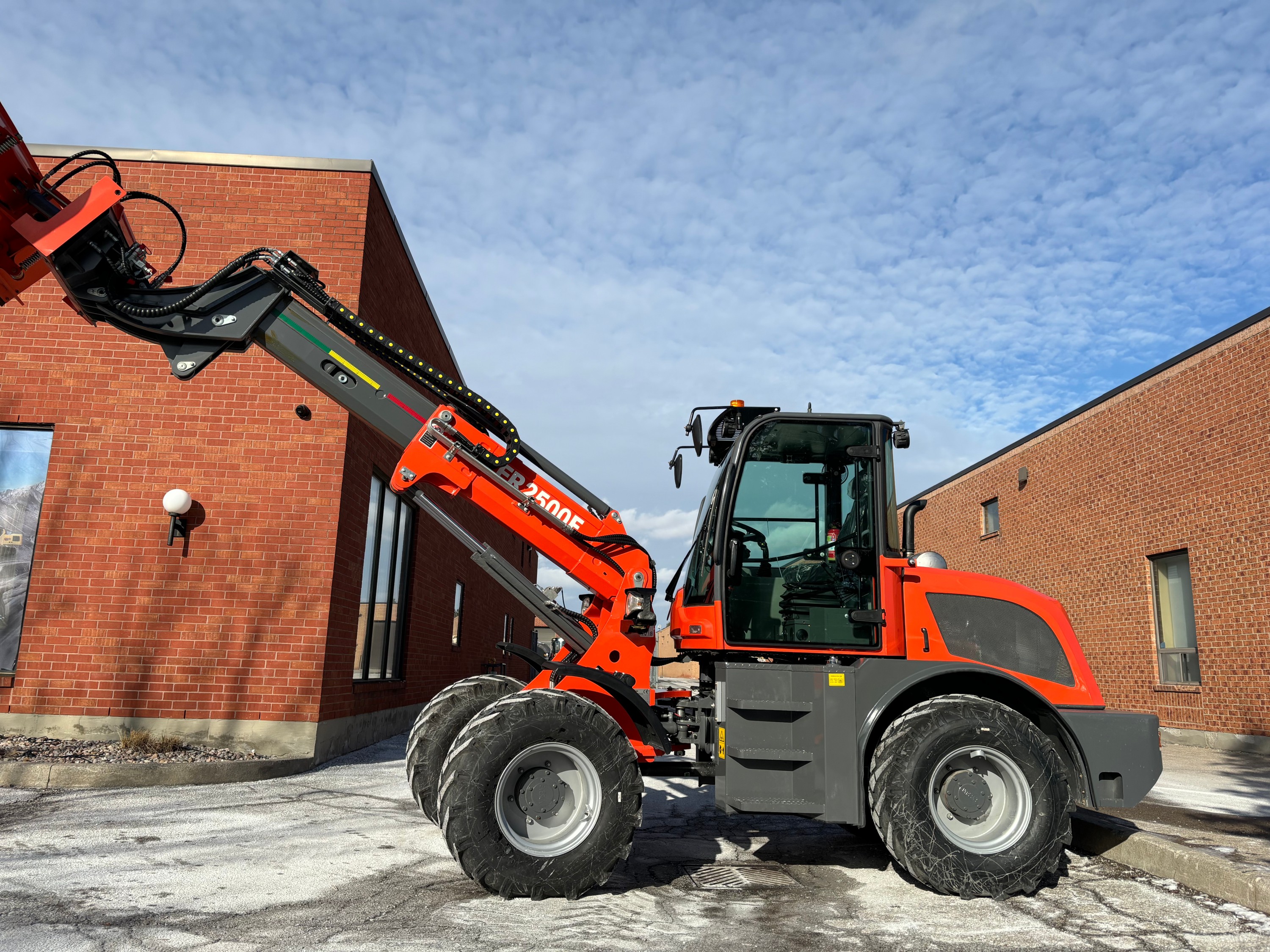

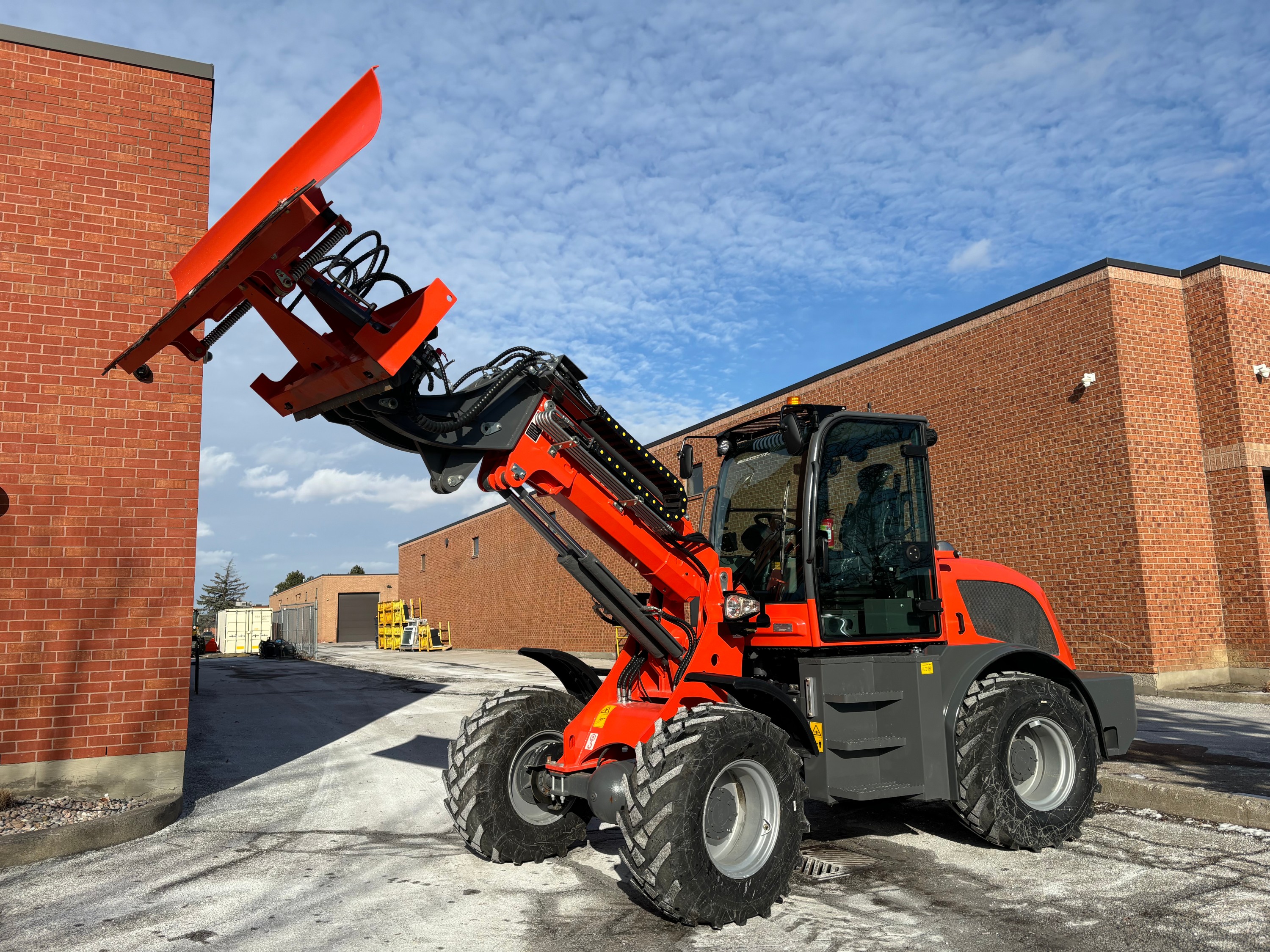

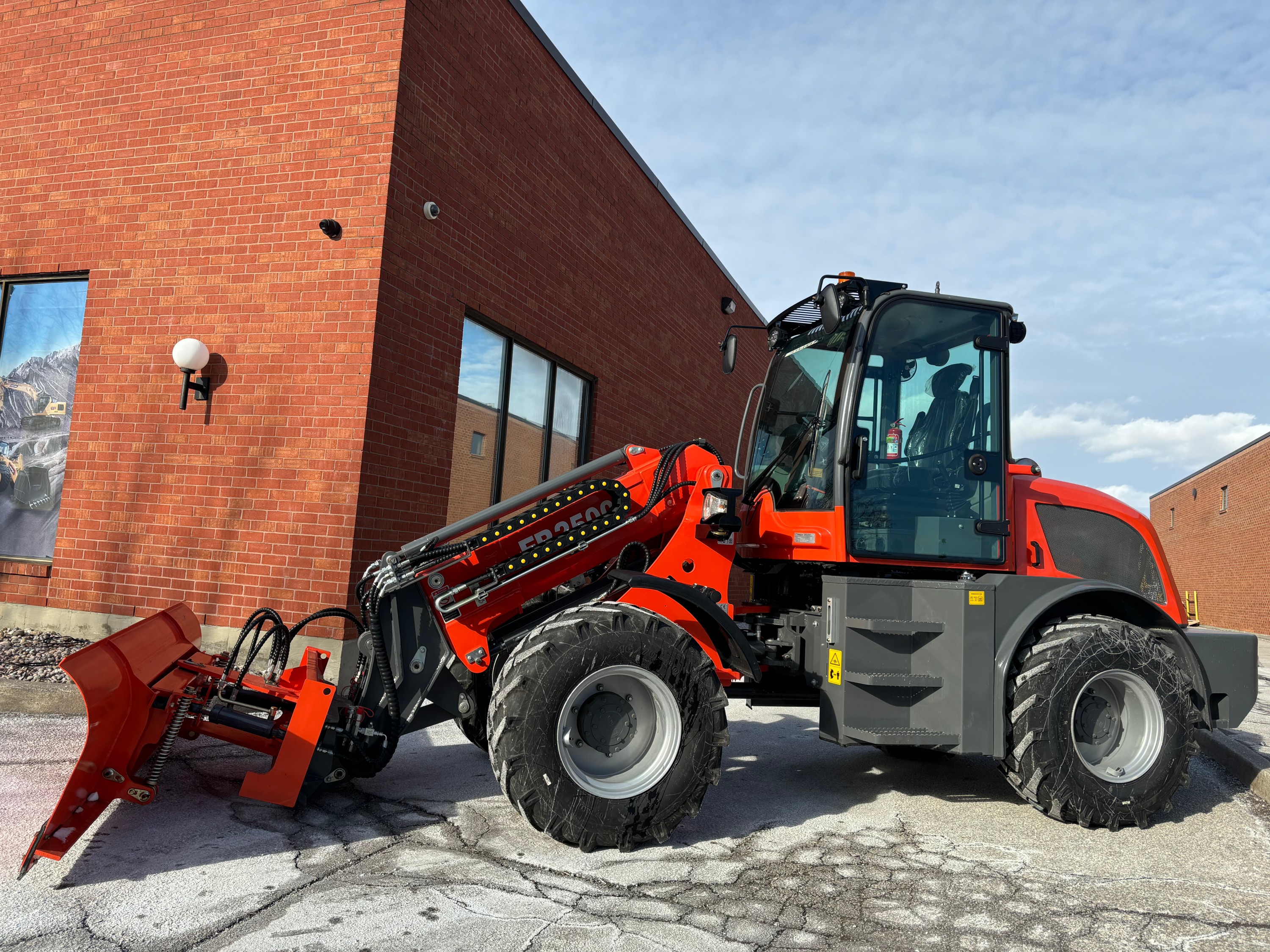

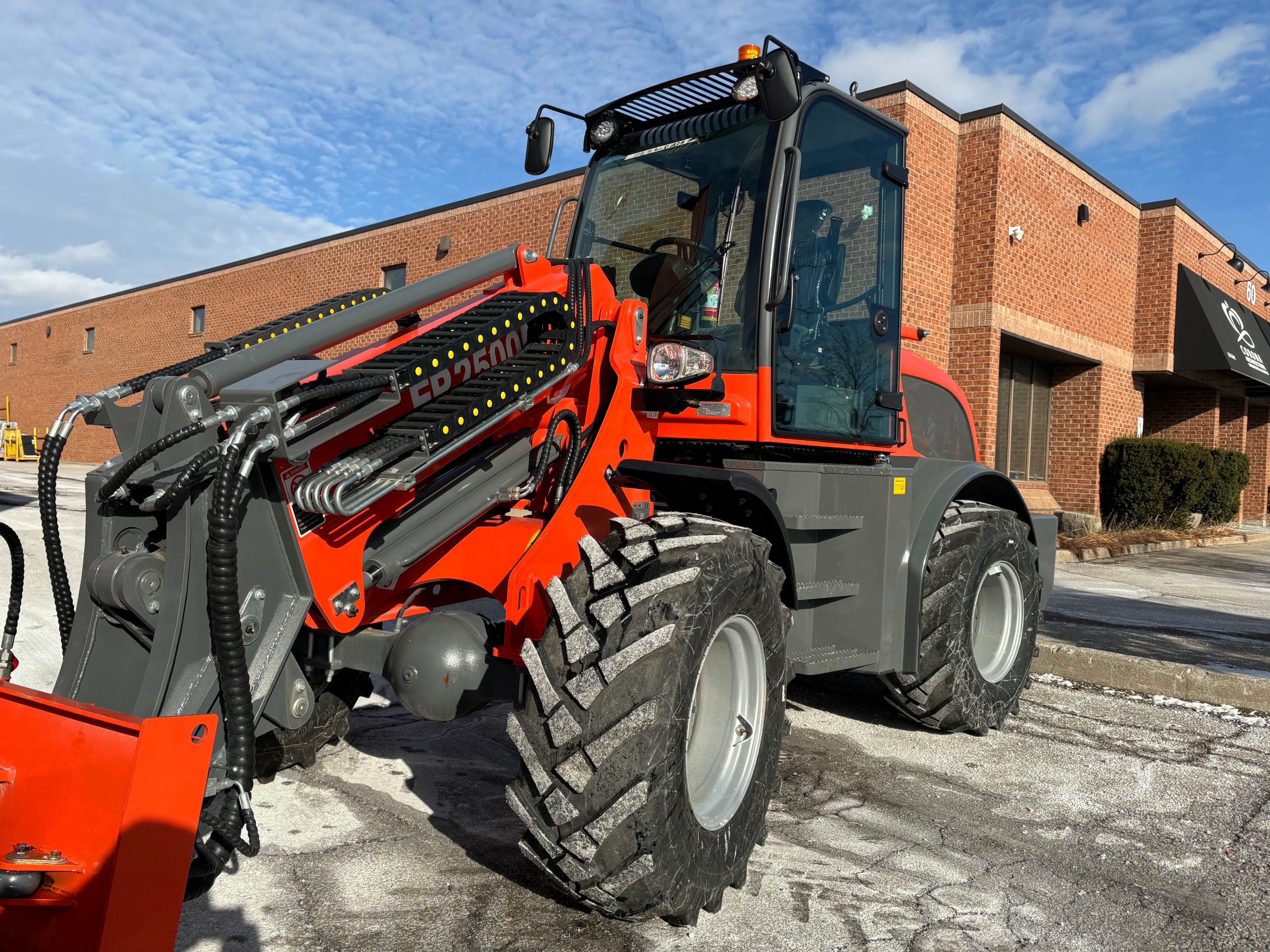

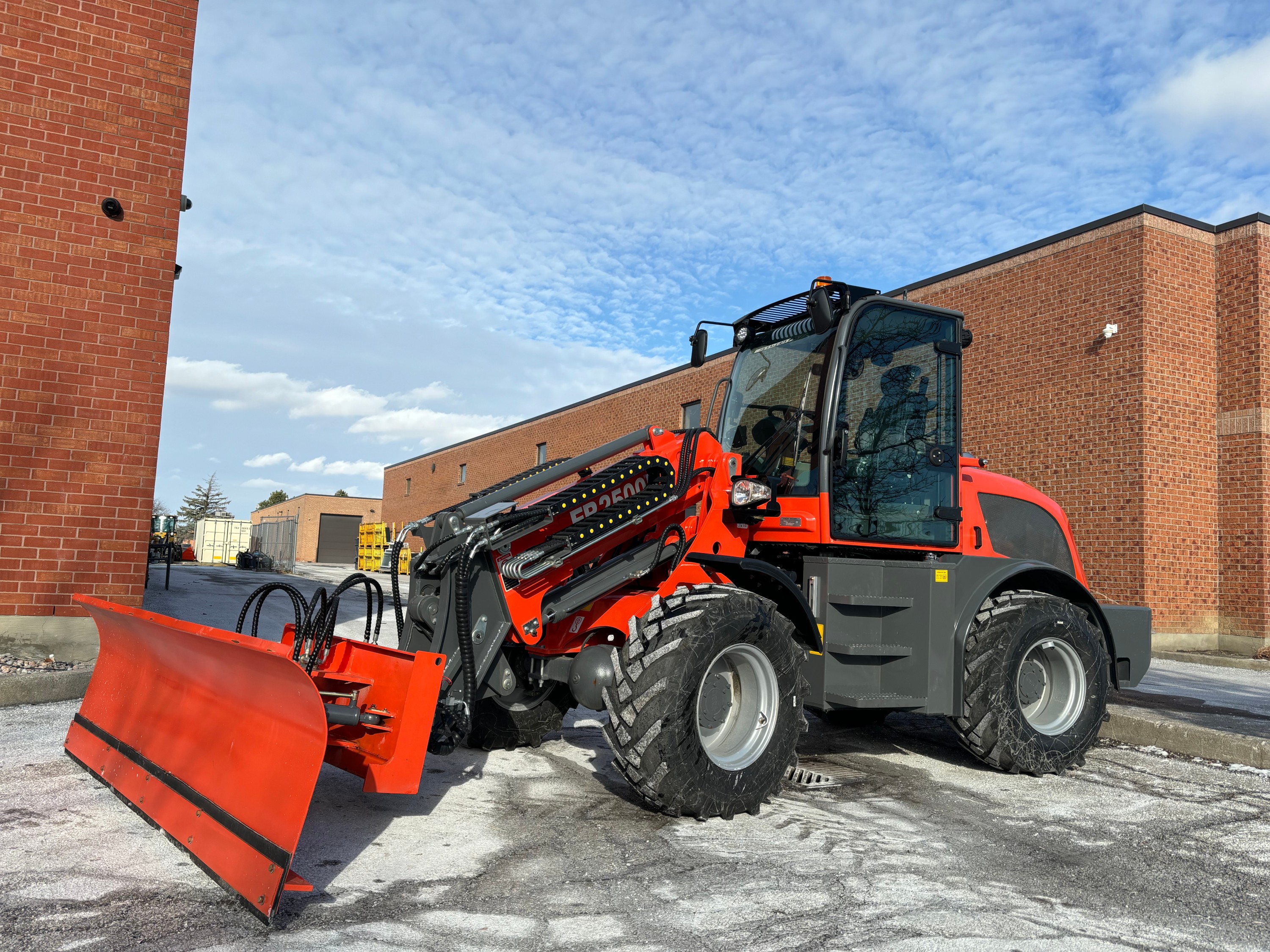

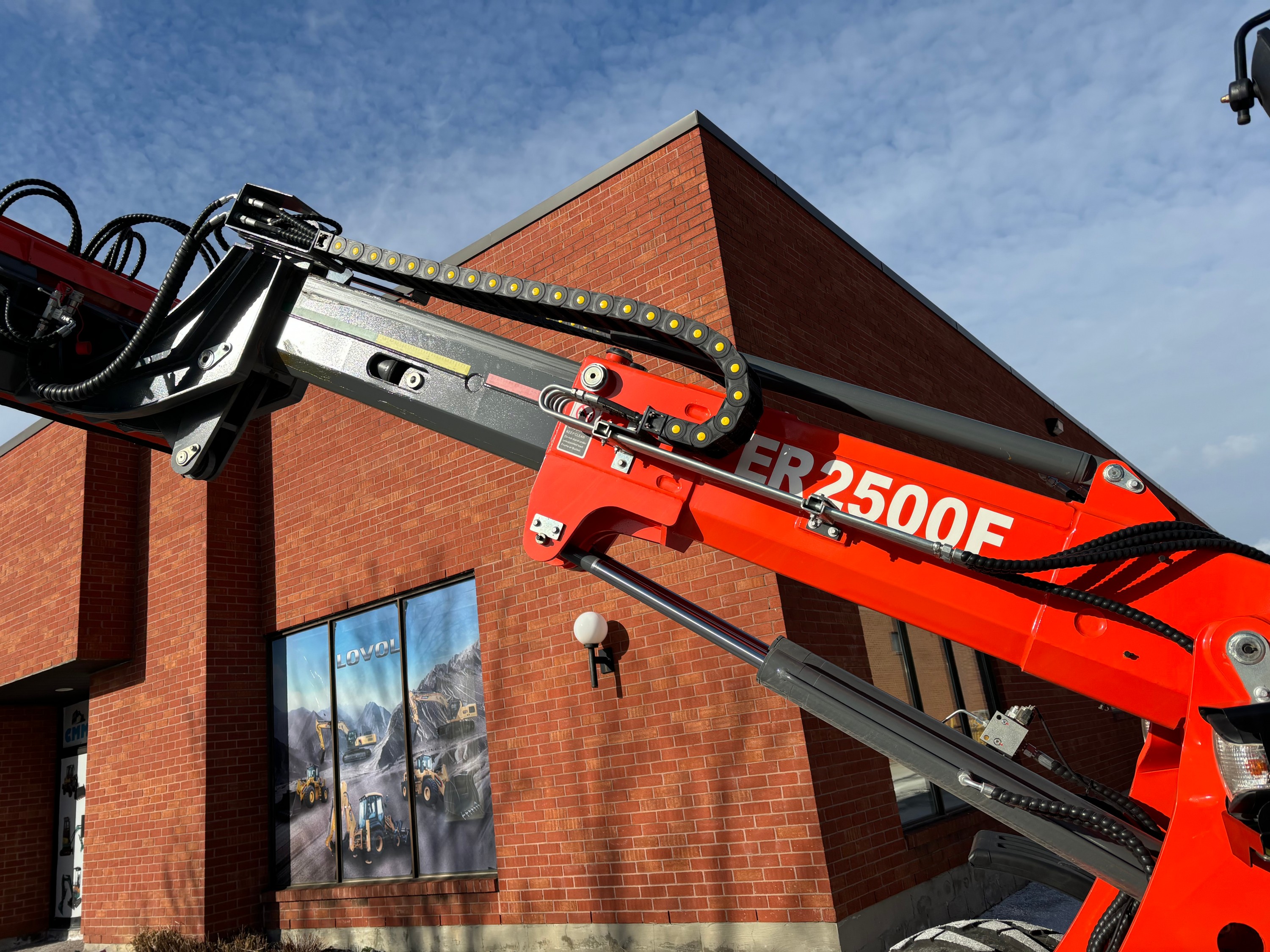

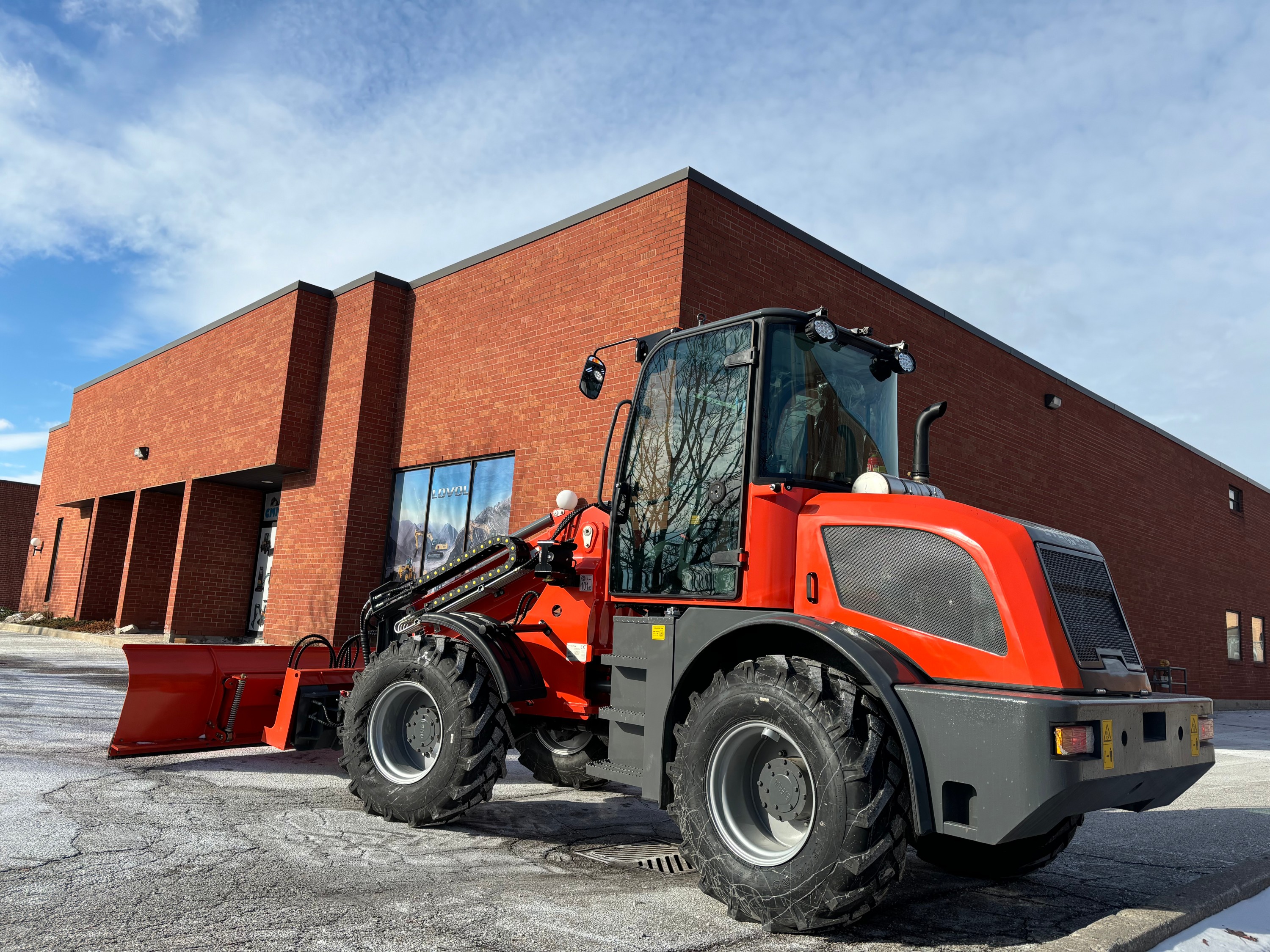

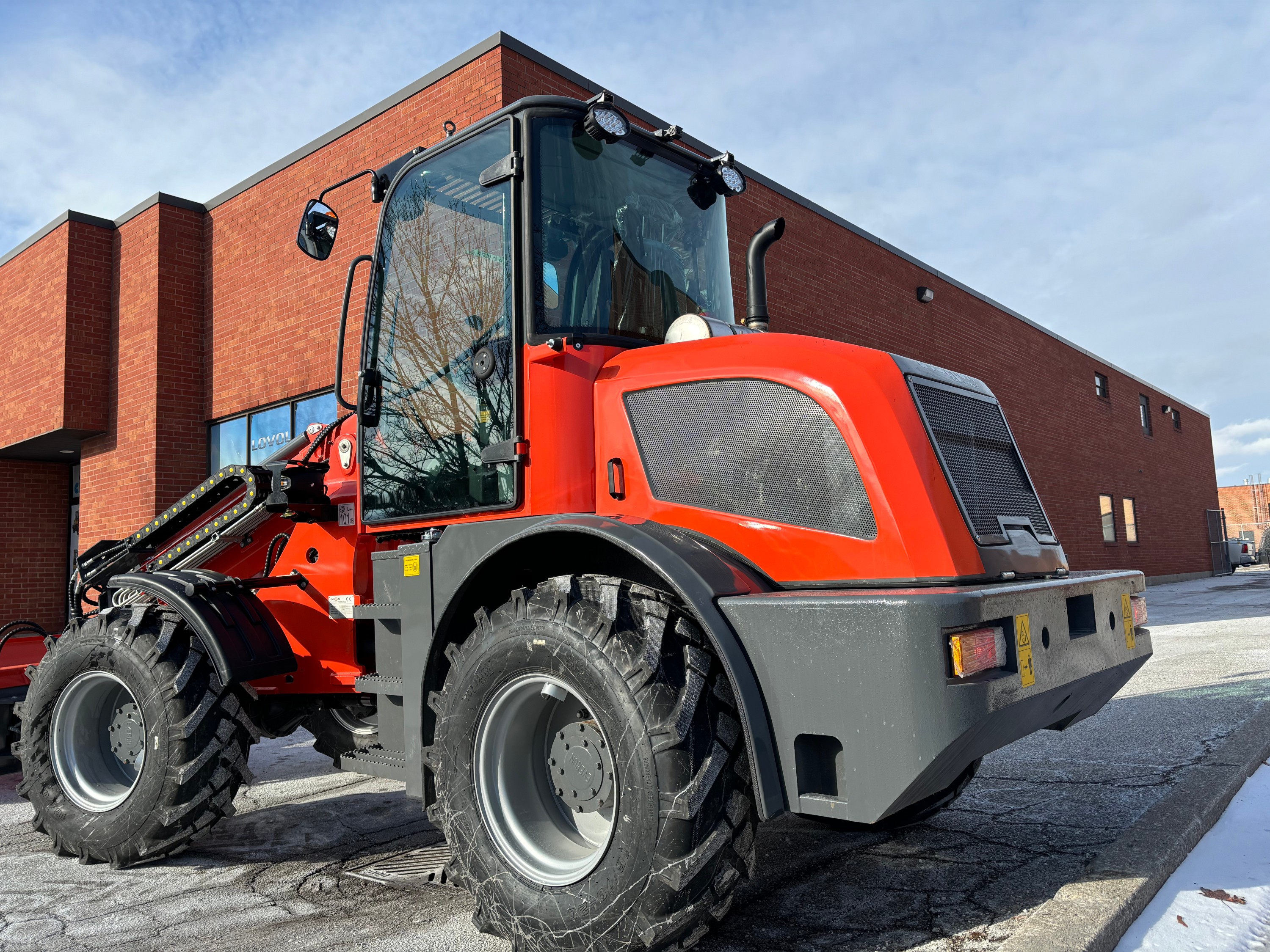

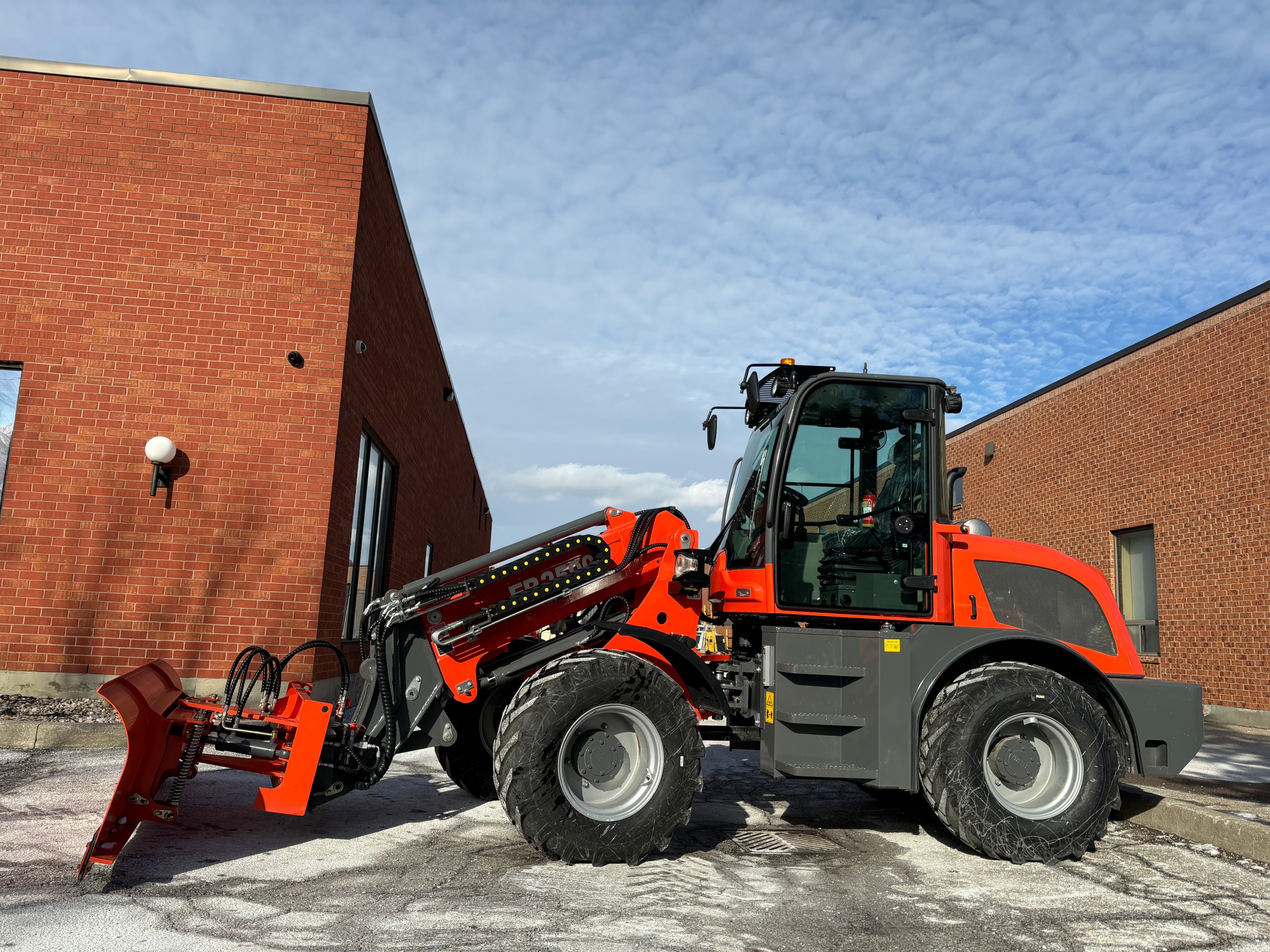

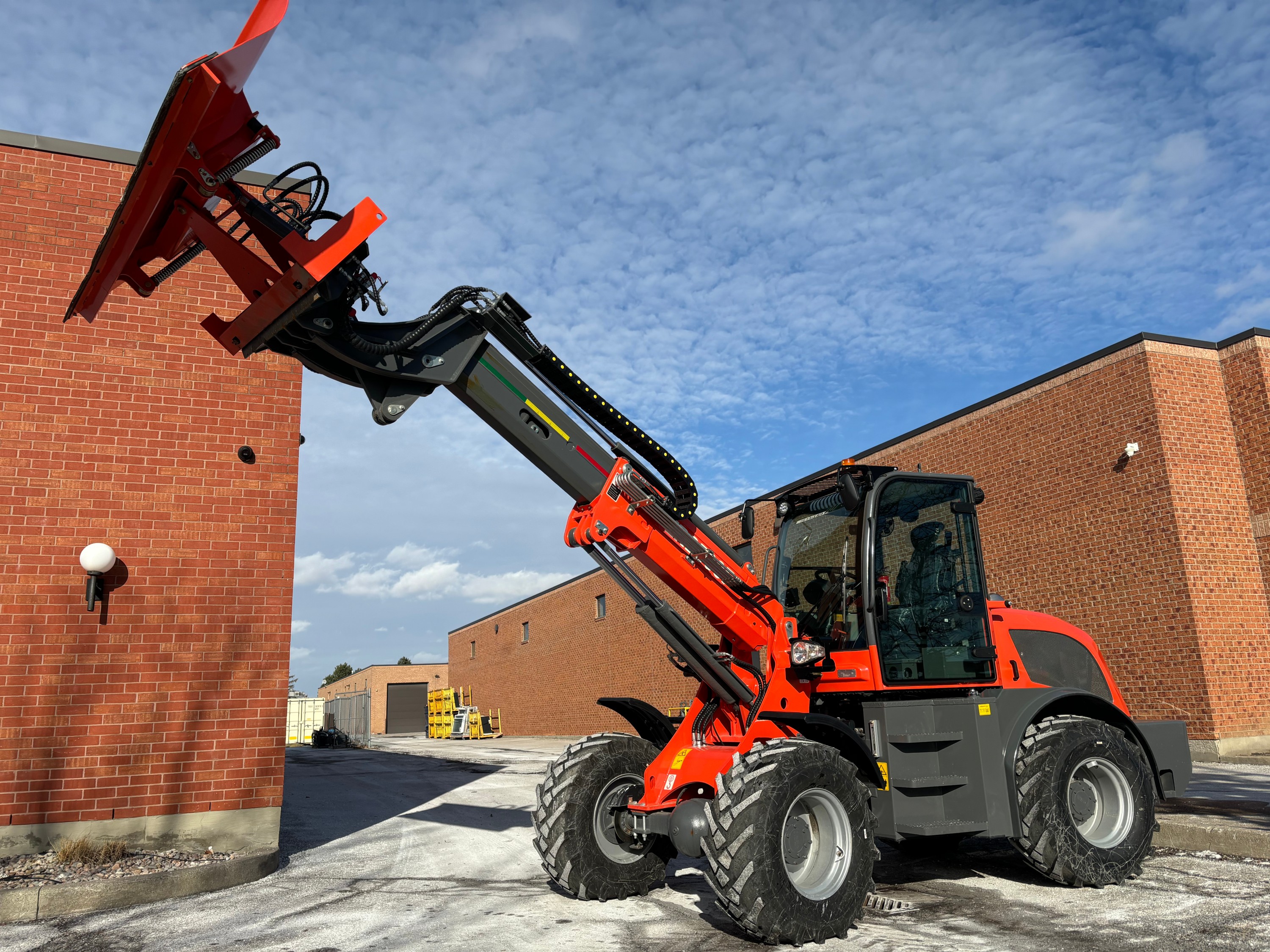

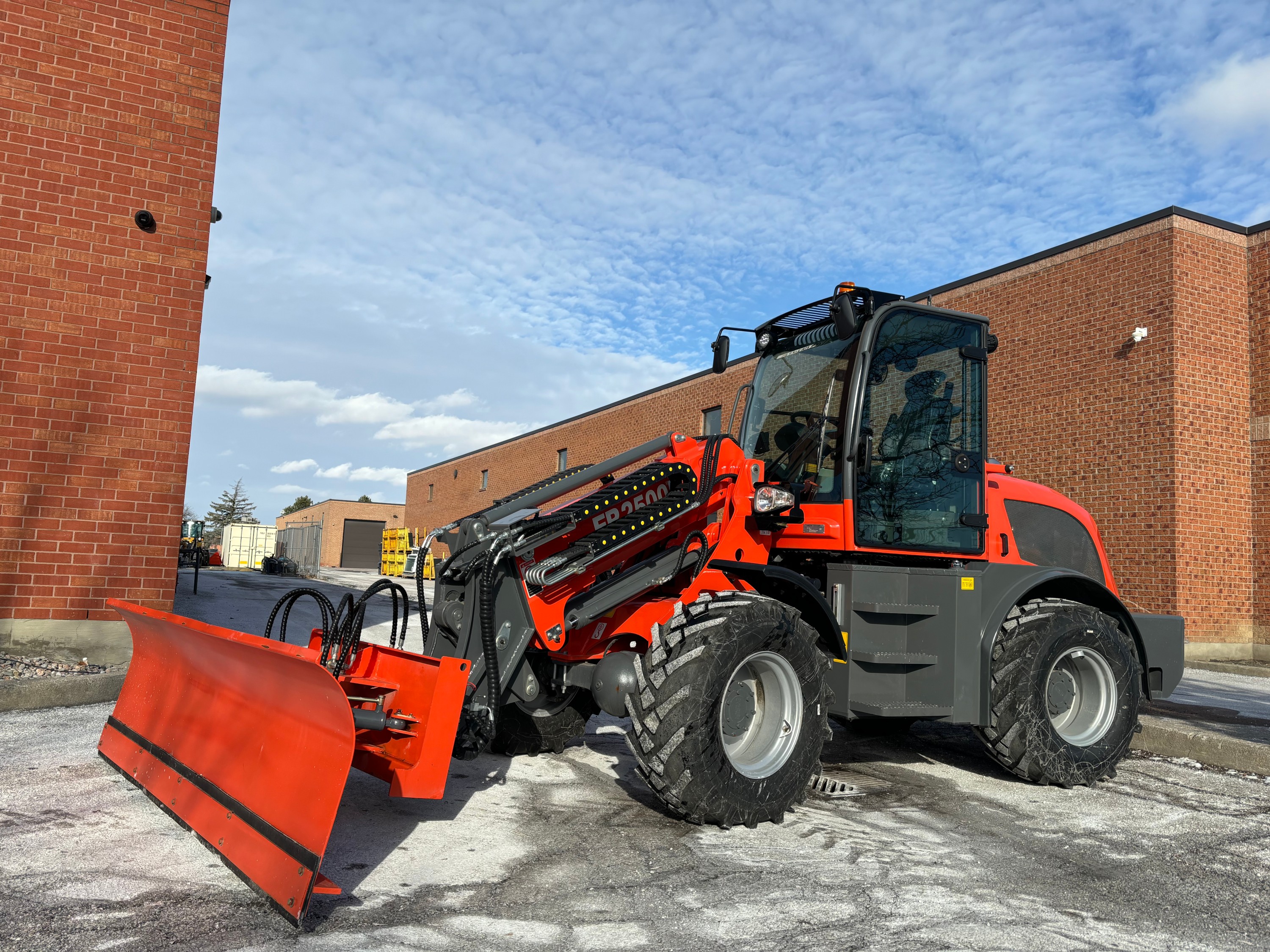

CMMS Telescope Loader ER2500

Specifications:

rated loading (kg)

2500 / 5512lb

overall weight (kg)

5300 / 11684lb

rated bucket capacity (CBM)

0.67 / 23.66ft³

maximum tractive force (kN）

35 / 7869lbf

maximum breakout force (kN）

25 / 5620lbf

maximum grade ability(°)

25

maximum dump height(mm)

3848 / 152in

maximum dump reach(mm)

1124 / 44in

overall dimension (L×W×H) （mm）

5755*1870*2740 / 227*74*108

minimum turning radius(outside of wheels)(mm)

4613 / 182in

(maximum steering angle)

40°

Oscillation angle

8°

model

Cummins QSF2.8 Engine(Tier4) engine

type

lnline water cooled, four stroke

No. of cylinder-bore/stroke (mm)

4-102×118 / 4-4.02x4.65 in

displacement (L)

3.856 /1.018 gal

rated power(kW)

55 / 74hp

idel speed (r/min)

800-850

rated speed (r/min)

2400

maximum torque N.m @speed r/min

300 @ 1500-1700

min fuel-consume ratio

≤230g/kw.h

torque converter

265

gearbox mode

Power shift normally engaged straight gear

gear shift

Mechanical, 2forward shift 2 reverse shift

maximum speed

21km/h

main reducing mode

Bevel gear grade l reduction

wheel base (mm)

2610 / 103in

wheel tread(mm)

1470 / 58in

ground clearance(mm)

358 / 14in

system working pressure (Mpa)

20 / 2900psi

boom lifting time (s)

7.2

total time (s)

12.9

fuel tank capacity (L)

94 / 24.83gal

service brake

Air-assist hydraulic brake, disc brake

parking brake

Manual disc brake

type specification

16/70-20

front tyre pressure （kPa）

350 / 51psi

rear tyre pressure （kPa）

350 / 51psi

Tyre

Performance

Engine

Transmission system

Drive axles

Hydraulic system

Brake system
